[FangXin] 7/14KW AC cabinet charging station AC220VInput 32A Maximum output current 300mm × 200mm × 1550mm sheet metal and acrylic panel

This product mainly consists of a control module, an indication module, a card swiping module, a communication module, a fuse, and a charging interface.

Normal usage conditions:
Altitude: ≤ 2000m.
Environmental temperature: -20 ℃~+50 ℃.
Environmental humidity: The maximum relative humidity shall not exceed 95% (when the ambient air temperature is 25 ± 5 ℃).
Storage temperature: -40 ℃~+70 ℃.
Operating location: No conductive or explosive dust, no gas or vapor that corrodes metals or damages insulation.
Installation environment: solid wall, metal bracket.

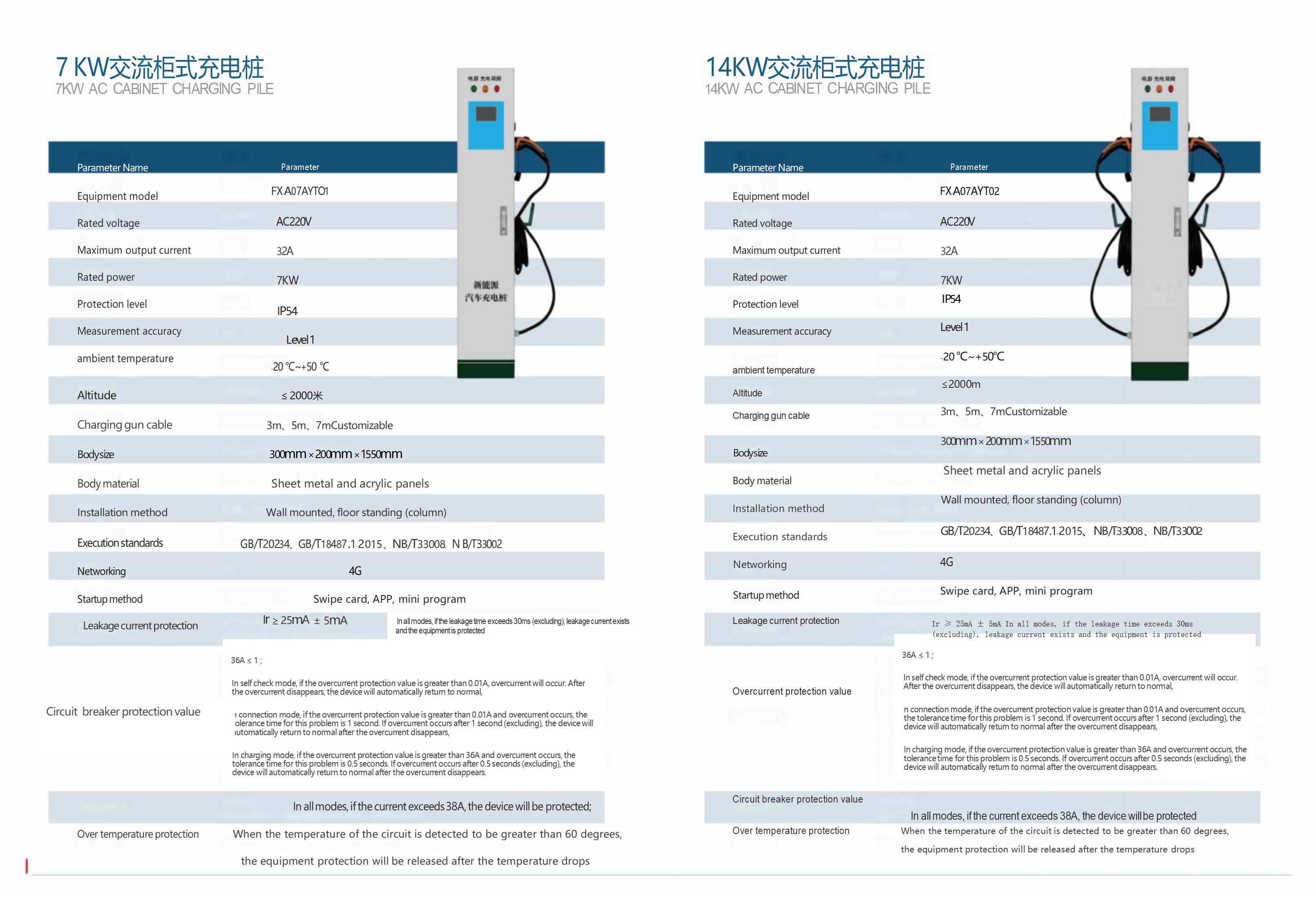

technical parameter
Meet the requirements of national standard technical specifications.

Product Features
1. Using ARM chips with high stability and performance as CPU units, and configuring powerful peripheral resources to make the product more stable and reliable;
2. Fully equipped with voice navigation throughout the charging process;
3. Equipped with comprehensive protection functions, including operation status monitoring, fault status monitoring, charging metering, and interlocking control of the charging process. Equipped with leakage protection switches and lightning arresters, the entire system can achieve functions such as overvoltage, overcurrent, overload protection, short circuit protection, leakage protection, and induction lightning protection;
4. The overall structure adopts a rainproof and dust-proof design, with a protection level of IP54, meeting the requirements for outdoor operation;
5. Status indicator light information:
Power light: red; Running light: green; Status light: yellow
