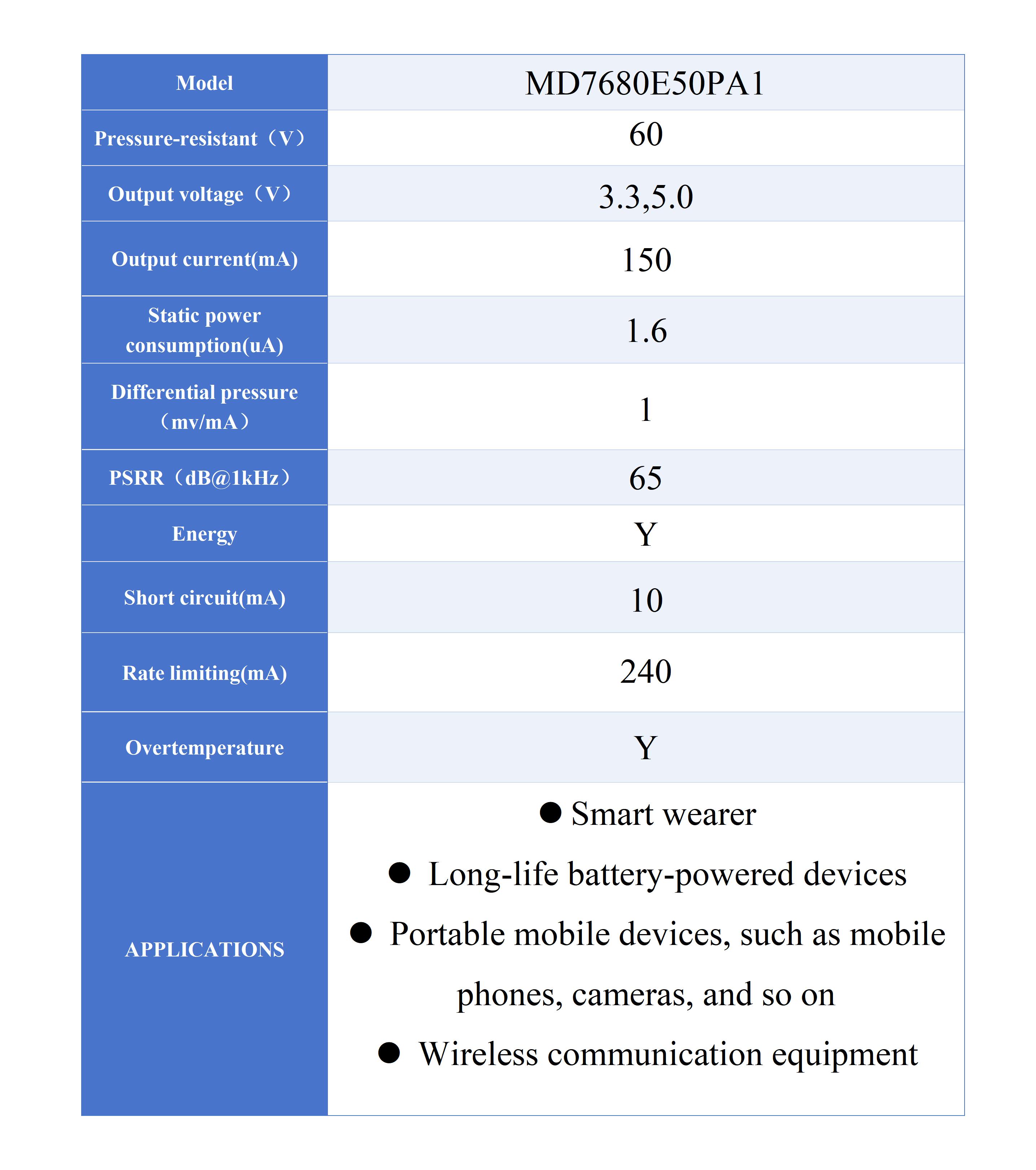

【MingDaWei】MD7680E50PA1 High voltage, ultra-low quiescent current low dropout regulator (LDO). 60 Pressure-resistant (V) 3.3,5.0 Output voltage (V) 150 Output current (mA) for Wireless communication equipment Smart wearer

 Features
⚫ Ultra-low Quiescent Current: 2.3uA
⚫ Maximum Input Voltage: 60V
⚫ Output Voltage Highly Accurate: ±2％
⚫ Maximum Output Current: 150mA
⚫ Dropout Voltage: 8mV@IOUT=1mA
⚫ Temperature Stability: ±40ppm/℃
⚫ ON/OFF Logic = Enable High
⚫ Protections Circuits: Current Limiter,
Foldback, Thermal shutdown
⚫ Output Capacitor: Low ESR Ceramic
Capacitor Compatible
