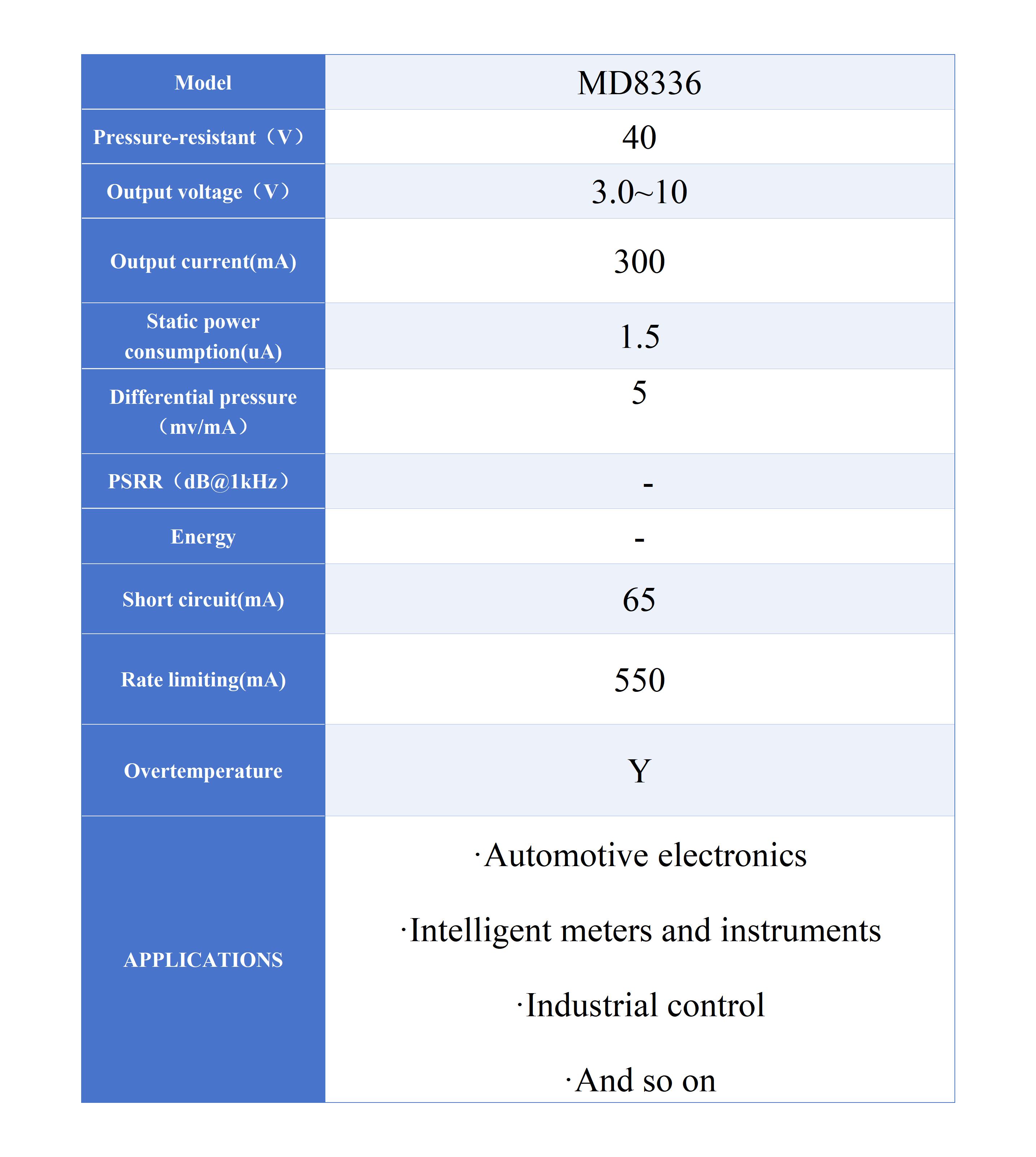

【MingDaWei】MD8336 High voltage (up to 40V) low power low dropout regulator (LDO) 40 Pressure-resistant (V) 3.0~10 Output voltage (V) 300 Output current (mA) for Portable mobile devices, such as mobile phones, cameras

FEATURES
⚫ Ultra-low Quiescent Current: 1.5uA
⚫Maximum Input Voltage: 40V
⚫ Output Voltage Highly Accurate: ±2％
⚫ Maximum Output Current: 300mA
⚫ Dropout Voltage: 4mV@IOUT=1mA
⚫ Temperature Stability: ±50ppm/℃
⚫ Protections Circuits: Current Limiter,
Foldback, Thermal shutdown
⚫ Output Capacitor: Low ESR Ceramic
Capacitor Compatible
